Analog Temperature Sensor

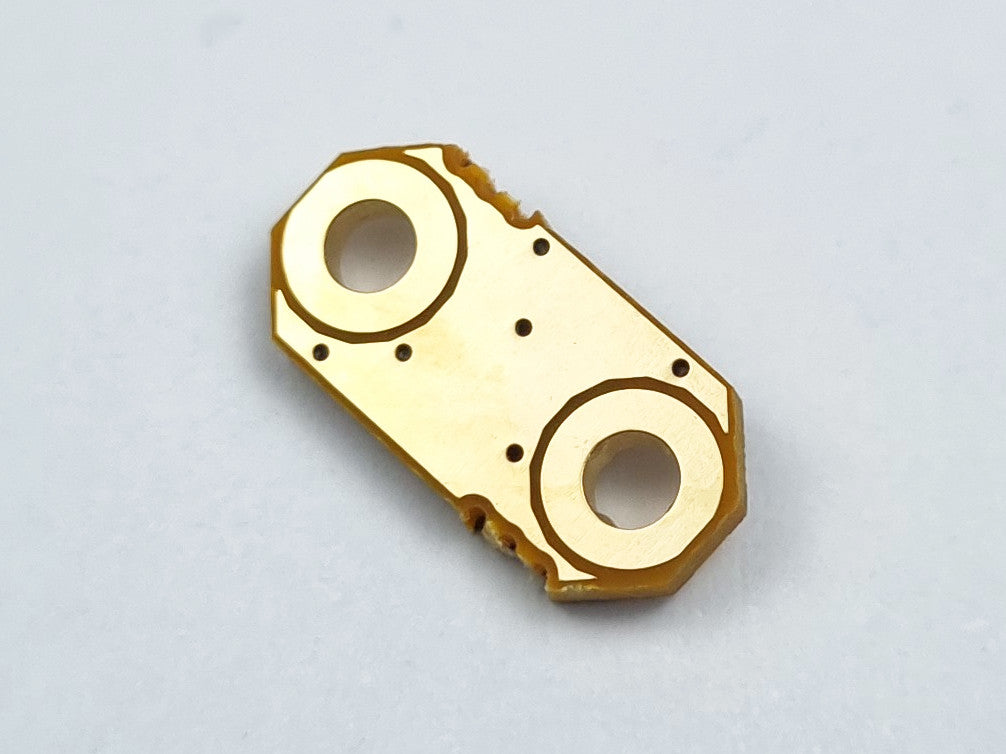

Analog temperature sensor measures the temperature of the device the board is mounted to. Outputs a voltage linear to the sensed temperature. Sensor board provides mounting holes and has copper exposed on back side for lower thermal resistance.

Directly compatible with all JCS analog ports.

Specifications:

• Operating voltage range: 2.3V to 5.5V

• Temperature sense range: -40degC to +150degC

• Temperature sense accuracy: +/-1.0degC
• Operating current (25degC at Vdd=3.1V): 10uA

• Mass: <1g
• Dimensions: 13.3mm x 6.6mm x 2.5mm

Documentation:

• Software Reference
• Hardware Reference
• Step Model
