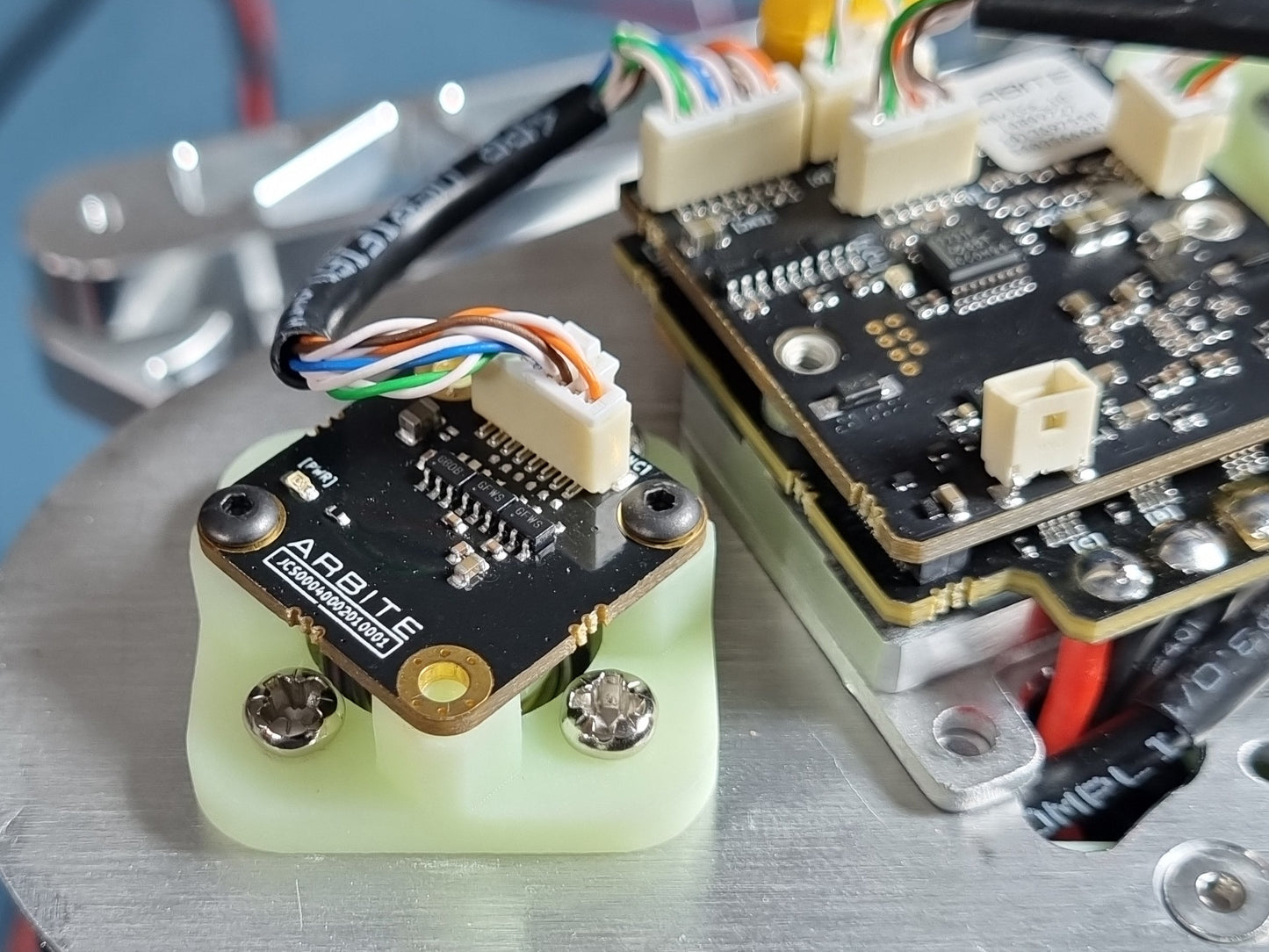

On-Axis Absolute Encoder with Differential SPI Interface

On-Axis Absolute Encoder with Differential SPI Interface

Regular price $69.00 USD
Regular price Sale price $69.00 USD
Sale Sold out

Please note: Lead time is currently 2 - 4 weeks

On-Axis differential SPI absolute encoder measures the angular position of a diametrically magnetized cylindrical magnet. This encoder is useful as a commutation encoder for Arbite brushless motor controllers.

Package includes a 6mm(dia) x 2.5mm diametrically magnetized target.



Specifications:

  • Position sensing: Rotary on-axis absolute
  • Position sensing resolution: 14bits (16384 counts / rev)
  • Interface: Differential SPI
  • Dimensions: 22mm x 22mm x 8mm
  • Mass: 2g
