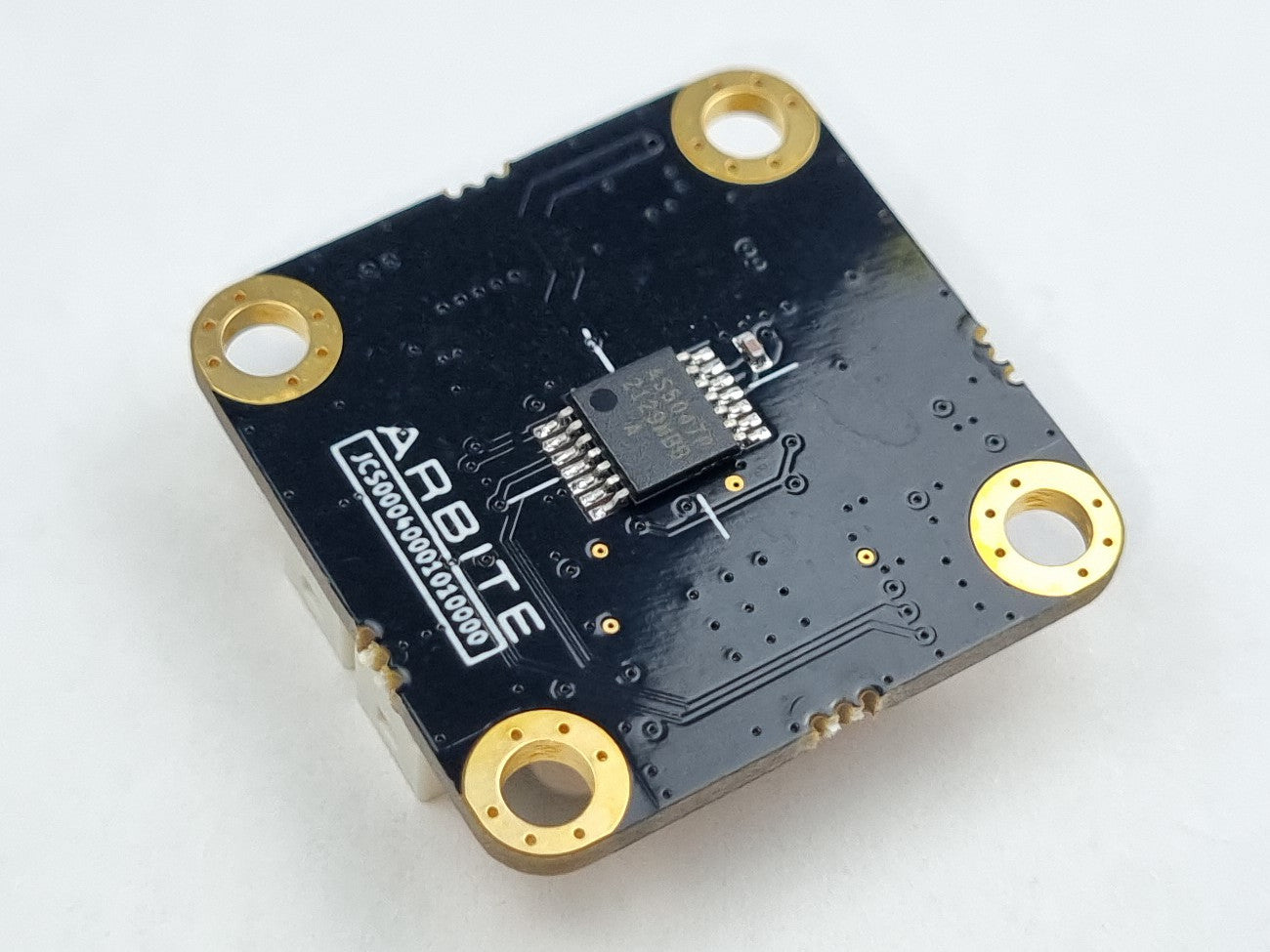

On-Axis Absolute Encoder with JCS interface

JCS on-axis absolute encoder measures the angular position of a diametrically magnetised cylindrical magnet.

Package includes a 6mm(dia) x 2.5mm diametrically magnetized target.

Specifications:

• Position sensing: Rotary on-axis absolute
• Position sensing resolution: 14bits (16384 counts / rev)
• On board position and velocity estimator
• Analog channels: 2x single ended, 12bit, 0V - 3.3V

• Internal update rate: 10kHz
• High speed JCS port for connection to a JCS Joint Controller
• Dimensions: 26mm x 26mm x 8mm

• Mass: 4g

Documentation:

• Software Reference
• Hardware Reference
• Step Model
