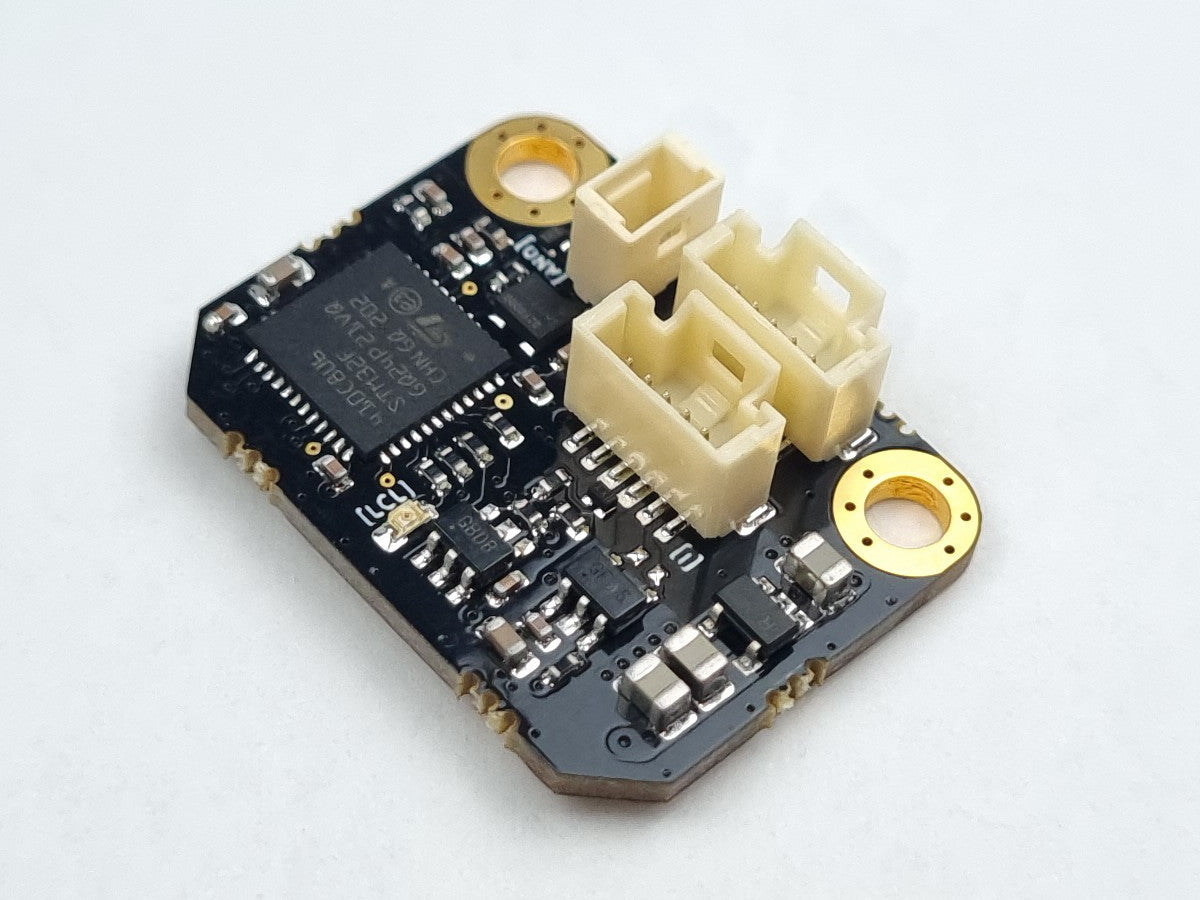

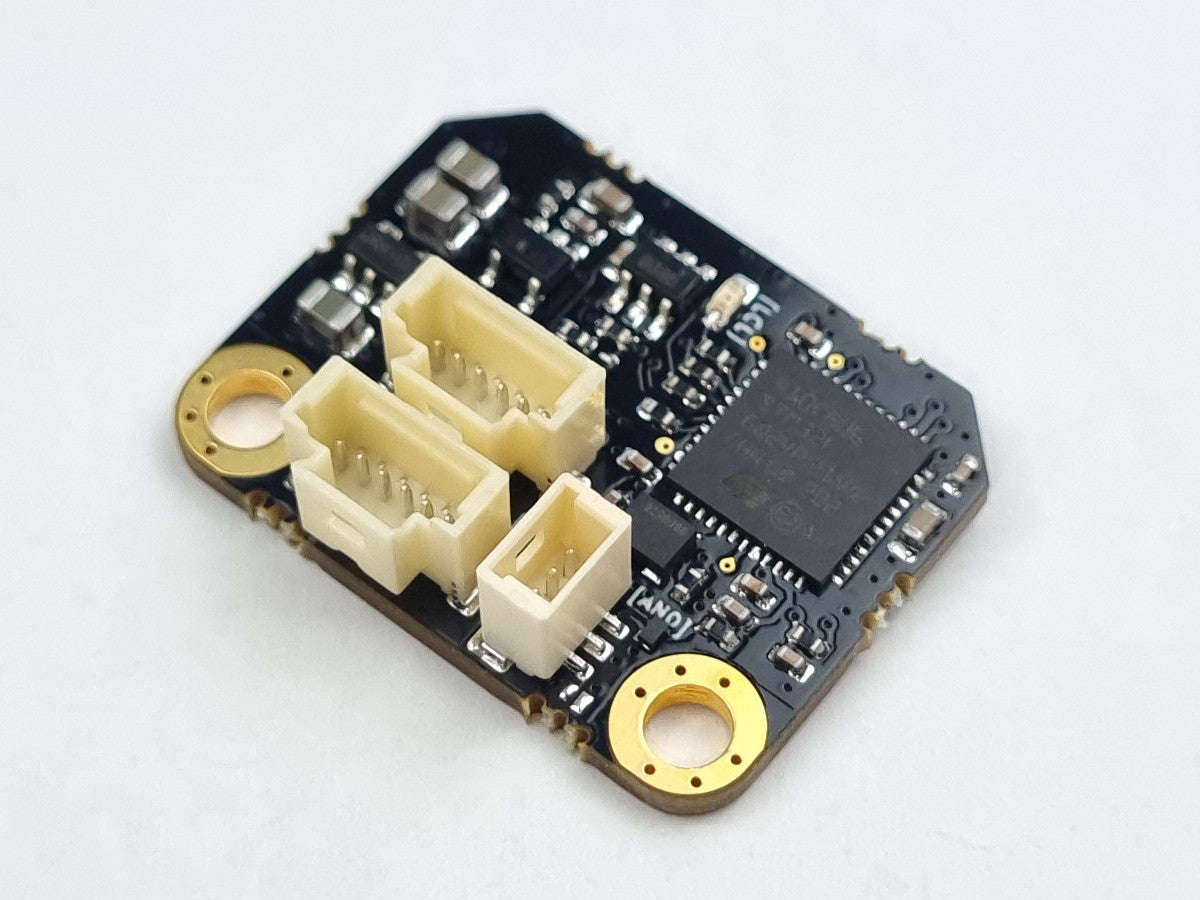

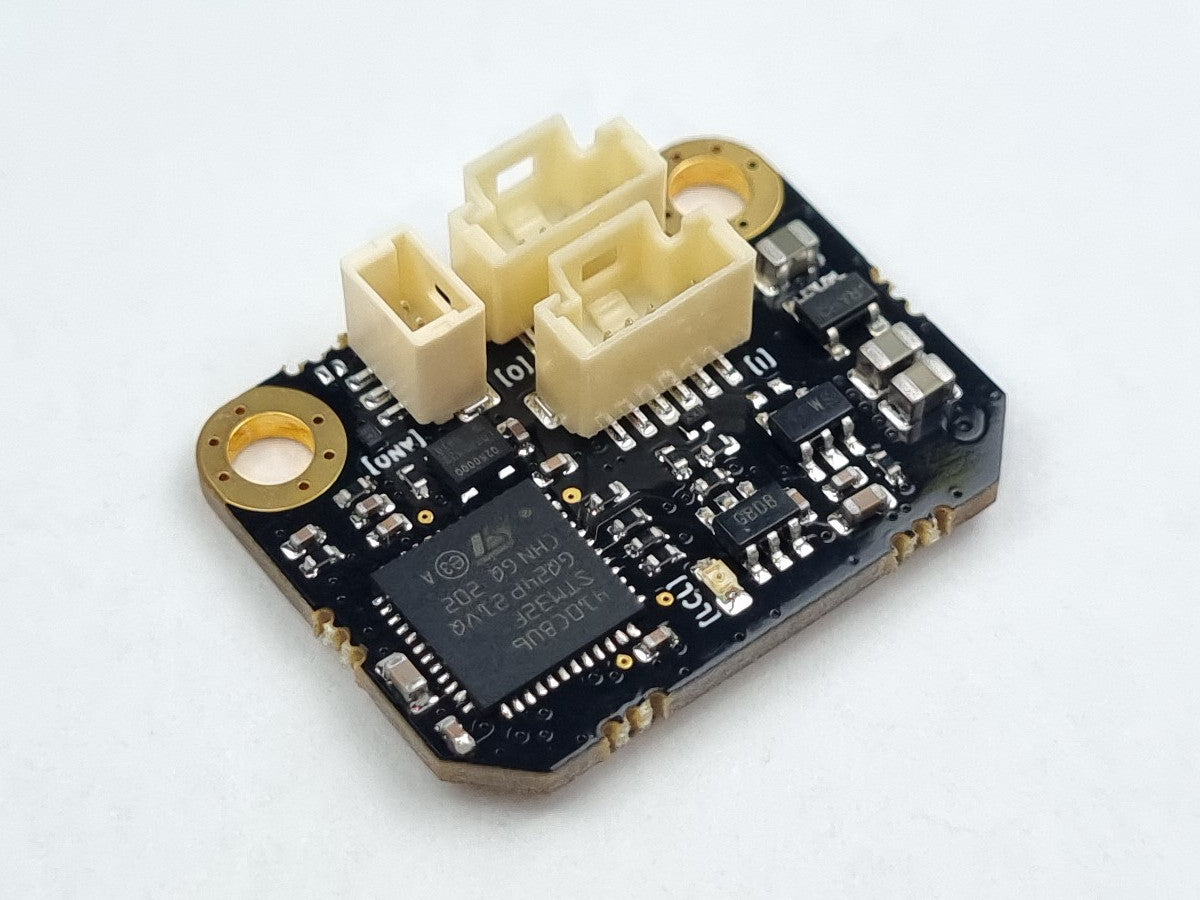

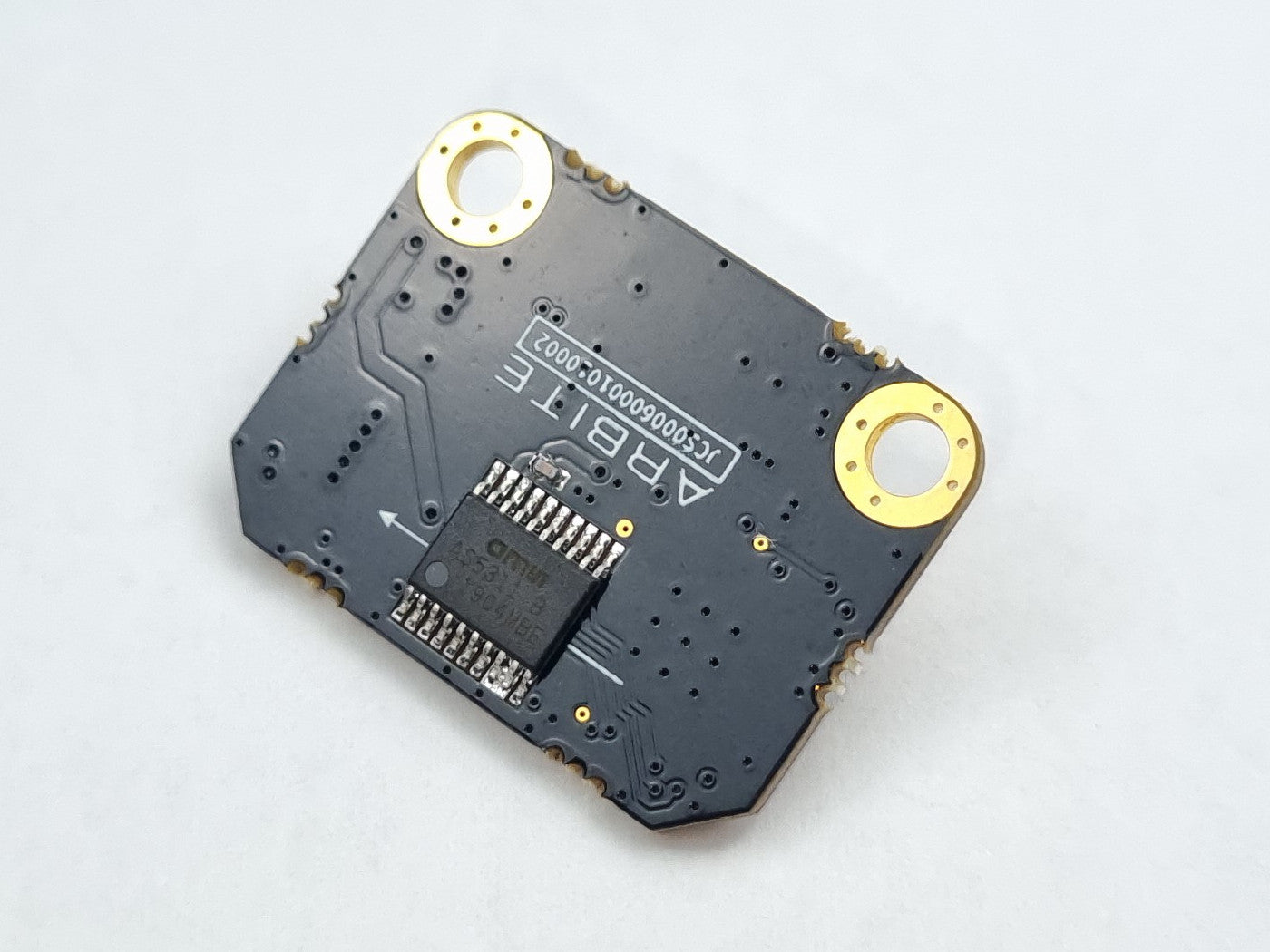

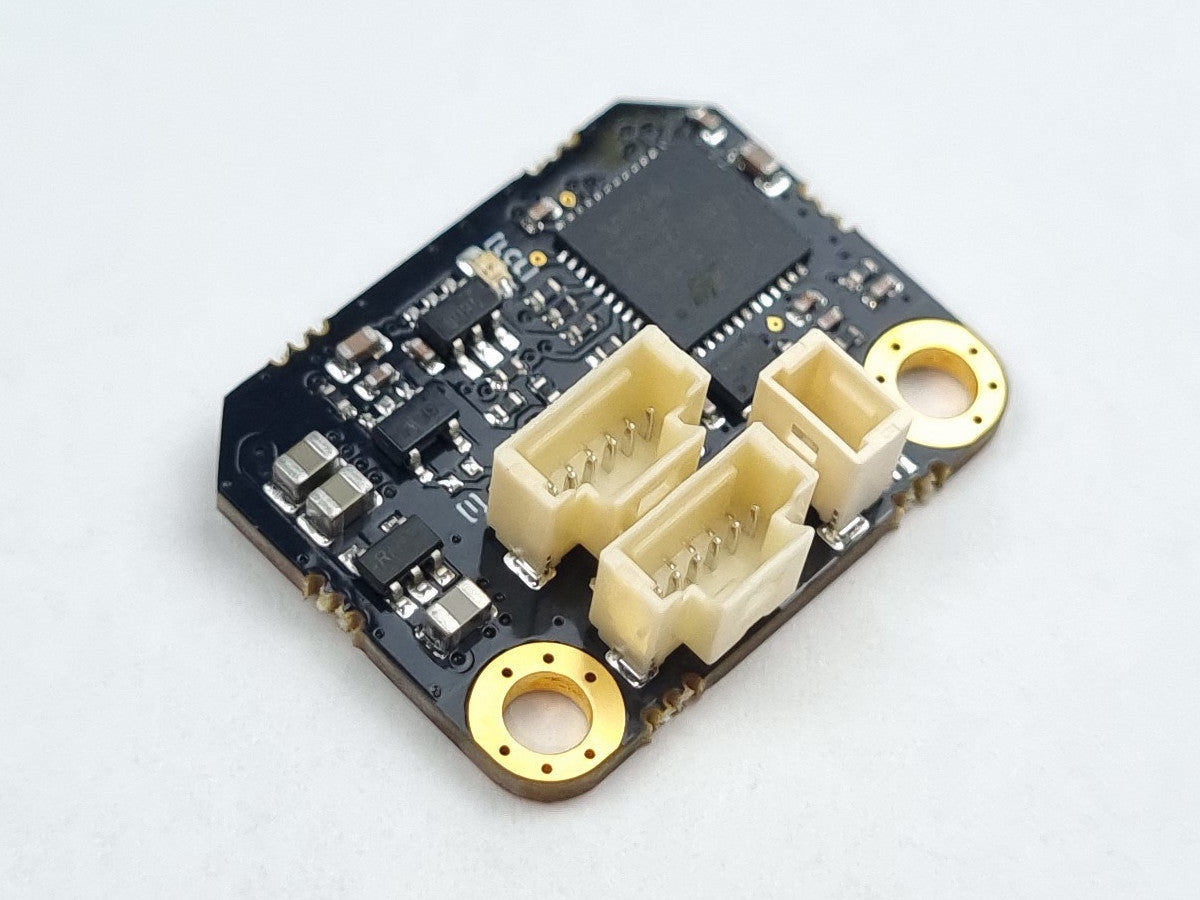

Off-Axis Relative Encoder with JCS Interface

JCS off-axis relative encoder measures the position of a linear or circular magnetic strip.

 Specifications:

• Position sensing: Linear or rotary off-axis relative
• Position sensing resolution: 4096 counts over a 2mm magnet pole pair (488nm)
• On board position and velocity estimators
• Internal update rate: 10kHz
• Analog channels: 1x single ended, 12bit, 0V - 3.3V

• High speed JCS port for connection to a JCS Joint Controller
• Dimensions: 20mm x 26mm x 8mm
• Mass: 3g
