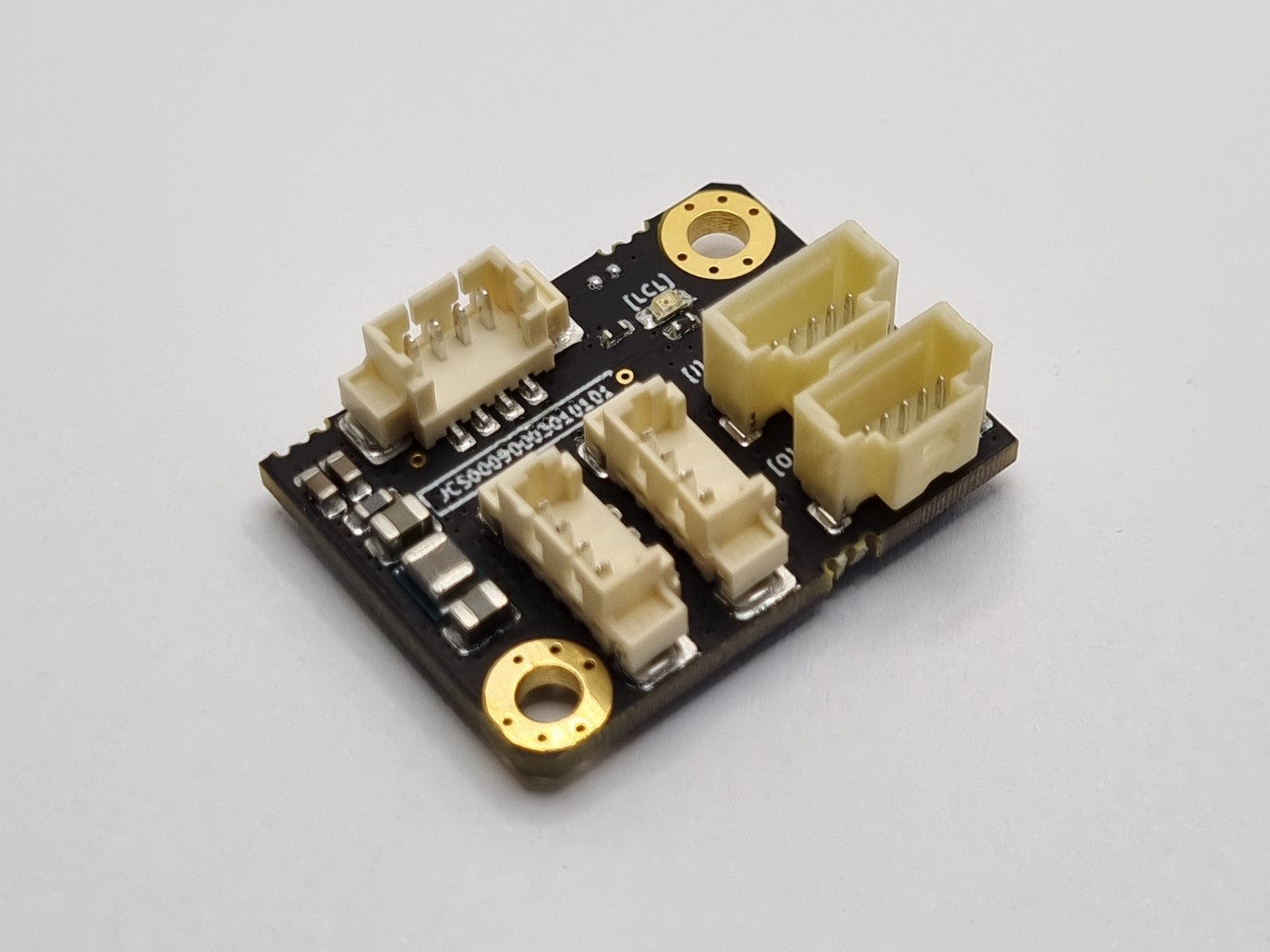

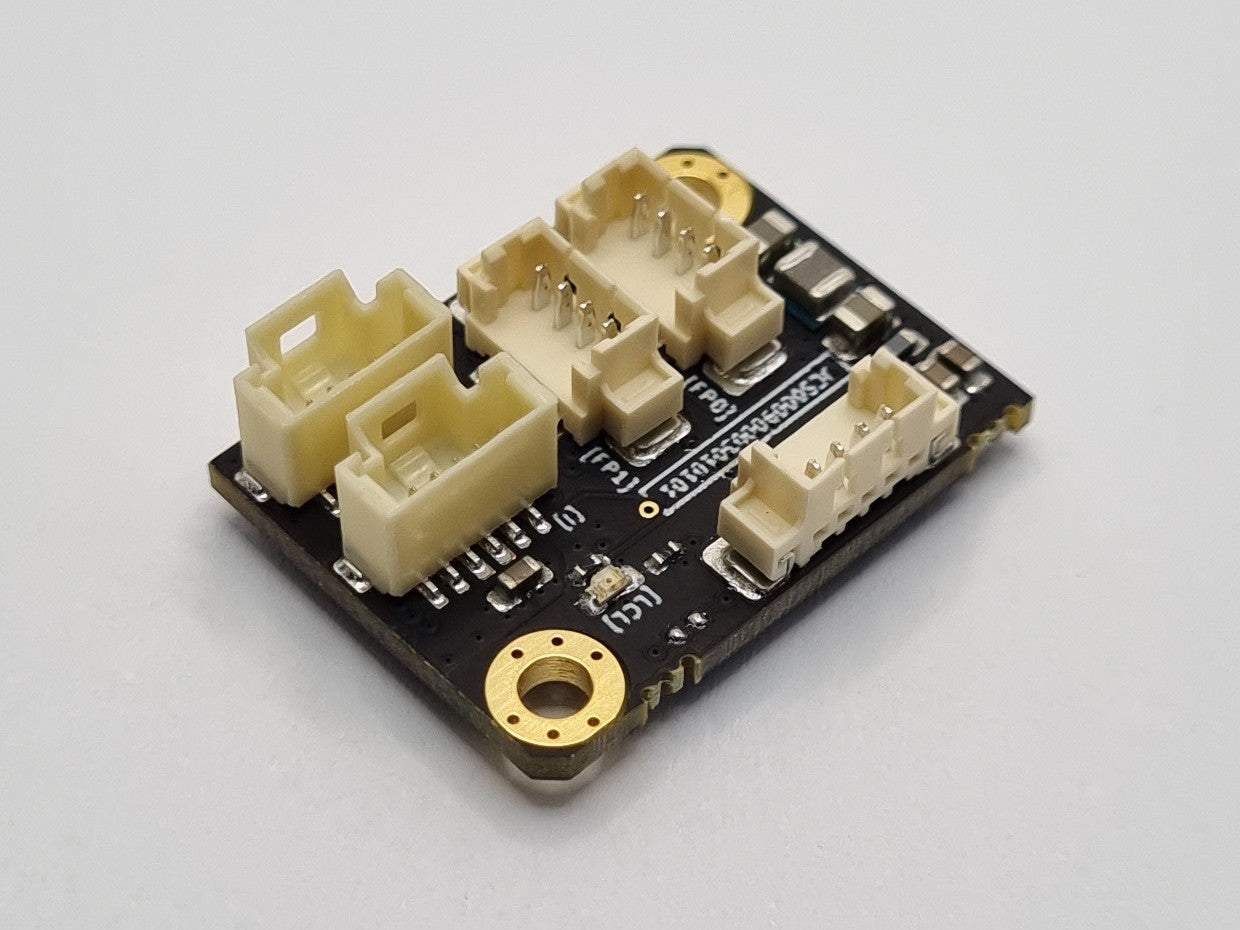

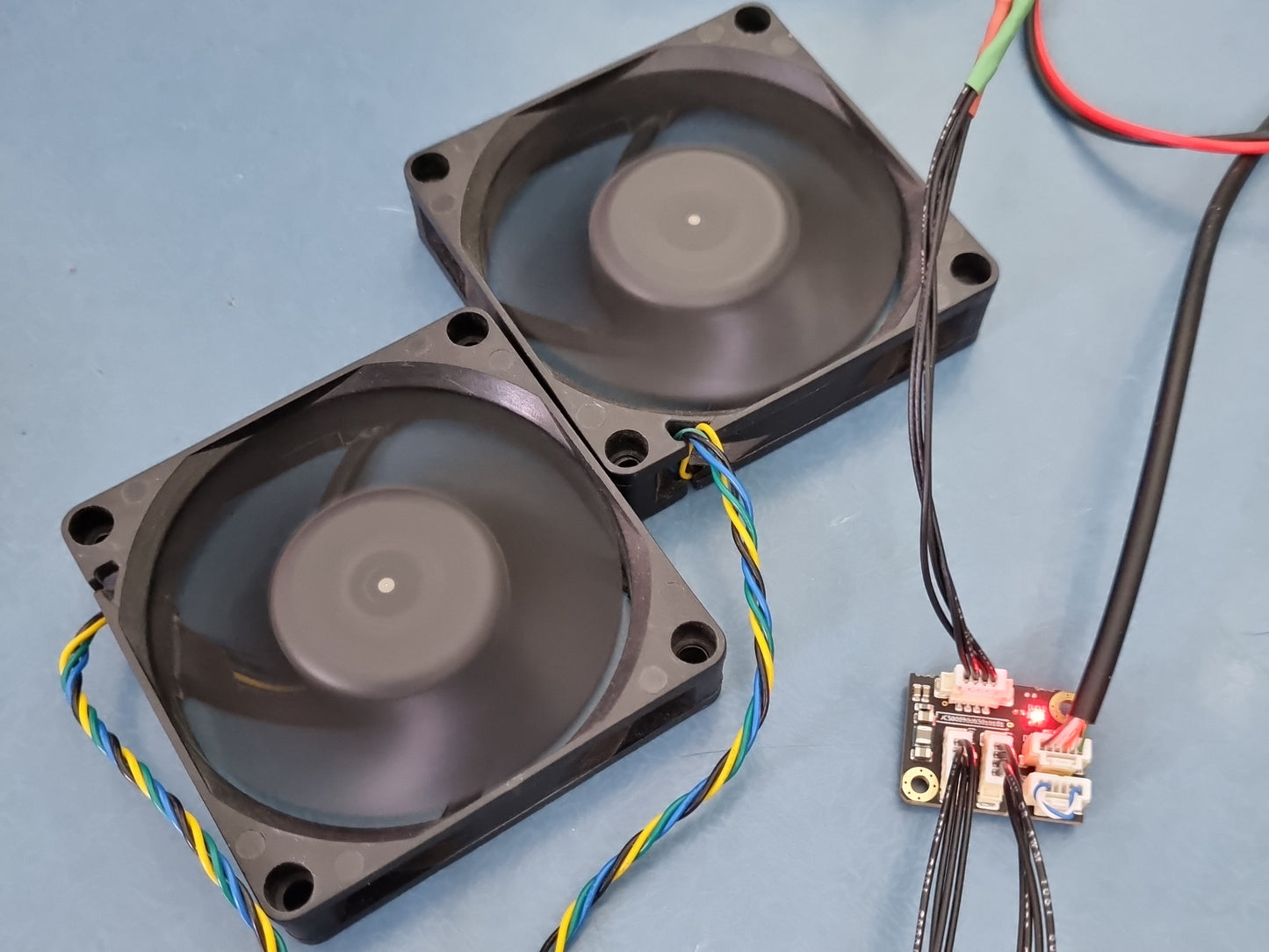

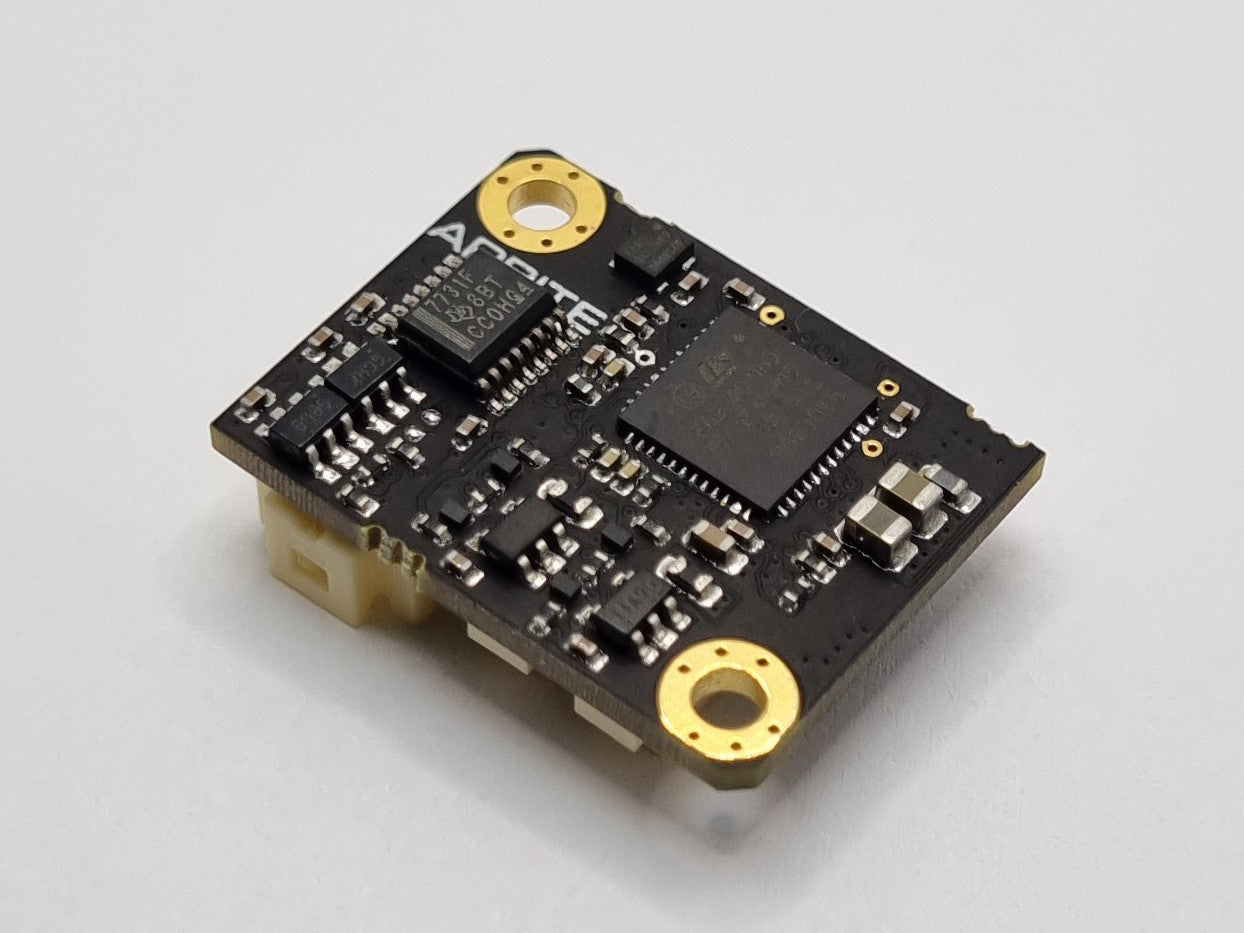

Two channel thermal manager for controlling and monitoring up to two computer-style fans or pumps. 2, 3 and 4 wire fans or pumps are supported, with each channel monitoring the attached device current.
Supports direct control of the attached devices by PWM, closed loop speed control, current control and closed loop control with feedback from an external source (e.g. driving a pump to control pressure from an external signal).
Preliminary specifications:
DC bus input voltage: 12V
Per channel current: 2A
Per channel maximum measurable current: 3.3A
PWM output frequency: 25kHz
Control frequency: 10kHz
Temperature range: 0-85C
High speed JCS port for connection to a JCS Joint Controller
